4x5 for 365 project (361/365)

Another two cameras that I really look forward to using more in 2015 are these two Zenobia 645 medium format folders.  They were made from 1952 to 1957 by Daiichi Kogaku, later Zenobia Kogaku and shoot a negative of 6 x 4.5cm, giving 16 shots per roll of 120 film.  They are Japanese clones of the German Zeiss Ikonta "A" folding cameras. Each one has a Neo-Hesper, 75mm F3.5 lens with speeds that range from 1 second to 1/500th and bulb mode.  I picked up two because they were dirt cheap, in great condition and I could set one up with B&W film and one with color or one with 400 ISO B&W and one with 3200 ISO B&W film to have a street photography kit that would cover most lighting and subject situations.  I added the accessory shoe rangefinder to the one on the left because these cameras are zone focus only and the rangefinder can accurately give me the feet distance to the subject to then focus the Zenobia's lens, an arrangement that sounds complicated but works surprisingly well in practice.

Technical details:
Busch Pressman Model D 4x5 large format press camera.
150mm Caltar-S II F 5.6 lens in Copal BT shutter.
Ilfor Fp4+ B&W film shot at 125 ISO.
1/30th second at F22.
Lighting from a bay windw across the room.
Developed in Adox Rodinal 1:50 dilution for 7 minutes and 20 seconds @ 20 degrees Celsius using a Beseler 8x10 print drum placed on Unicolor Uniroller 352 auto-reversing rotary base.
4x5" negative scanned with Epson V600.


4x5 for 365 project (80/365)

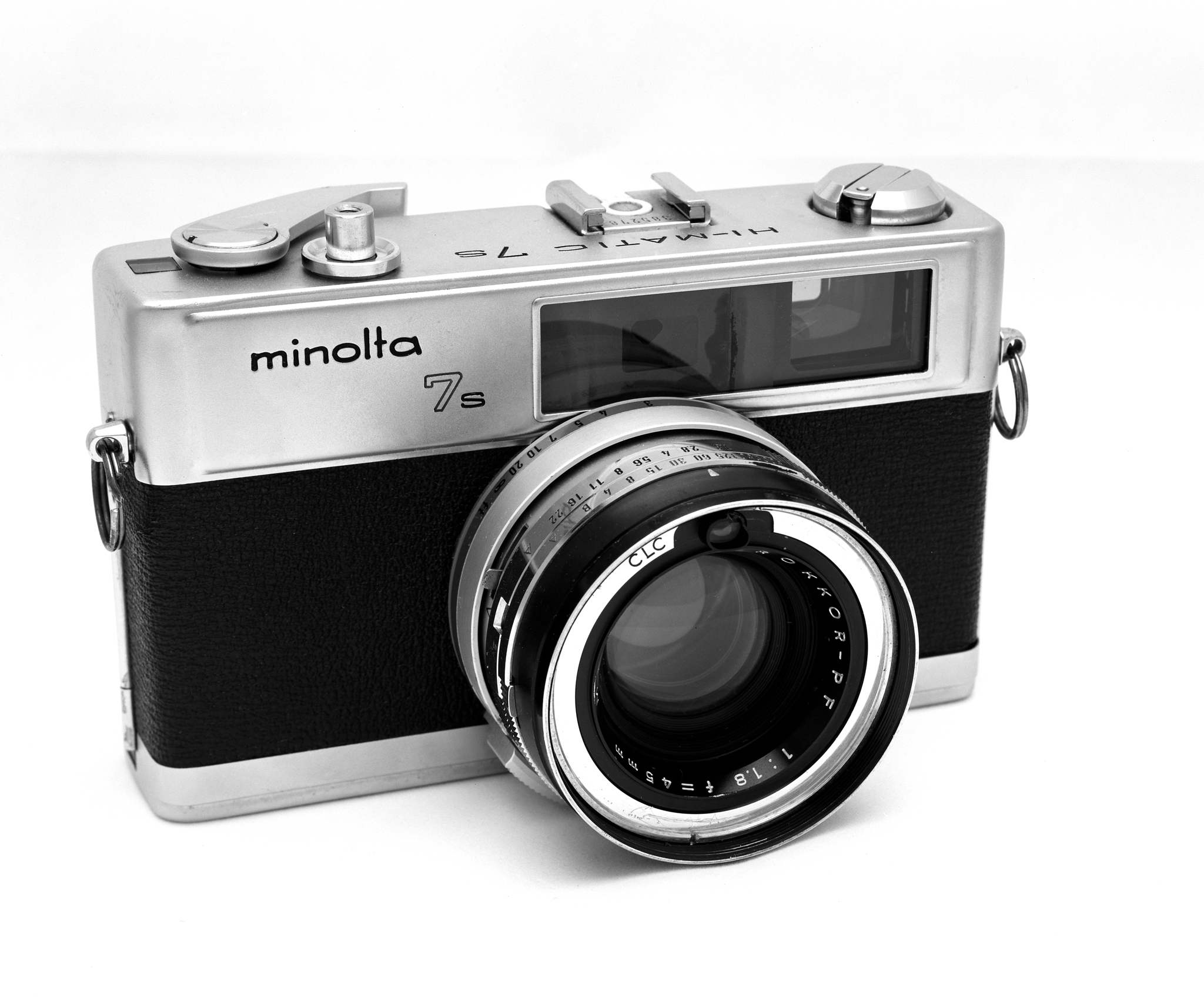

Another entry for the 4x5 for 365 project featuring items from my vintage analog photography collection.  This is my Minolta Hi-Matic 7s 35mm rangefinder. It features a fixed Rokkor 45mm F1.8 lens, shutter speeds from 1/4 seconds to 1/500th plus bulb mode.  It can use either aperture priority or full manual exposure modes.  It has a coupled rangefinder with coupled parallax correction.  The meter is the CDS CLC type with a viewfinder needle indicator.  The ASA range of the camera if 25-800.  It has both a hotshoe and a PC sync socket and can sync at all speeds on X setting.  It's not the best rangefinder I've ever shot in terms of quality but it's still a fun walk around camera to take along on trips.

Camera: Calumet 45NX 4x5 large format monorail view camera.

Lens: Rodenstock Geronar 150mm F6.3 lens in a Copal 0 shutter.  Hoya Yellow-Green filter on the lens.

Film: Ilford Delta 100 B&W Negative Film, shot at box speed.

Exposure: 1/60th @ F32.

Lighting: Subject placed in light tent and lit from above with one Alien Bees B800 studio strobe in a 22" white lined beauty dish with diffusion sock @ full power. Strobe triggered with PocketWizard Plus II radio triggers.

Development: Self Developed in Kodak Xtol 1+2 dilution in Paterson Universal Tank using the Taco Method. 12 minutes @ 20 degrees Celsius. Kodak indicator stop bath.  Ilford Rapid Fixer. Photo-Flo rinse.

Scanning: Negative scanned with Epson V600 in two scans and merged back together in PhotoShop since the V600 doesn't natively support 4x5 scans in one pass.  Cropped in Lightroom 4.

4x5 for 365 project (79/365)

Today's 4x5 for 365 project entry continues on with shots of items from my vintage analog photography collection.  This is my Minolta SR-T 202 35mm film camera.  These were made around 1975.  It features all manual exposure with a TTL option if you have the battery for it.  It has a fully mechanical cloth focal plane shutter with speeds from 1-1/1000 sec plus bulb mode for long exposures.  The shutter makes this amazing "PLACK !!!" sound that is very metallic and satisfying in a tactile kind of way.  There is a self timer mode as well.  The camera can flash X-sync up to 1/60th of a second and has a built in pc-sync port as well as a standard hot shoe.  This particular SR-T 202 came with a Rokkor 50mm F1.7 lens which was the standard lens that usually came with this model and also a Minolta 70-210 F4 telephoto lens.

Camera: Calumet 45NX 4x5 large format monorail view camera.

Lens: Rodenstock Geronar 150mm F6.3 lens in a Copal 0 shutter.

Film: Fuji Super HR-T 30 medium speed green sensitive X-Ray film.  Purchased as 8x10" sheets and cut down to 4x5".  Film rated at 100 ISO.

Exposure: 1/60th @ F32.

Lighting: Subject placed in light tent and lit from above with one Alien Bees B800 studio strobe in a 22" white lined beauty dish with diffusion sock @ full power. Strobe triggered with PocketWizard Plus II radio triggers.

Development: Self Developed film in Rodinal (Adox Adinol) 1:100 in three reel Paterson Universal Tank using Mod54 six sheet 4x5 insert.  7 1/2 minutes @ 20 degrees Celsius with minimal inversions. Kodak indicator stop bath. Ilford Rapid Fixer. Photo-Flo. Hung to dry.

Scanning: Negative scanned with Epson V600 in two scans and merged back together in PhotoShop since the V600 doesn't natively support 4x5 scans in one pass.
